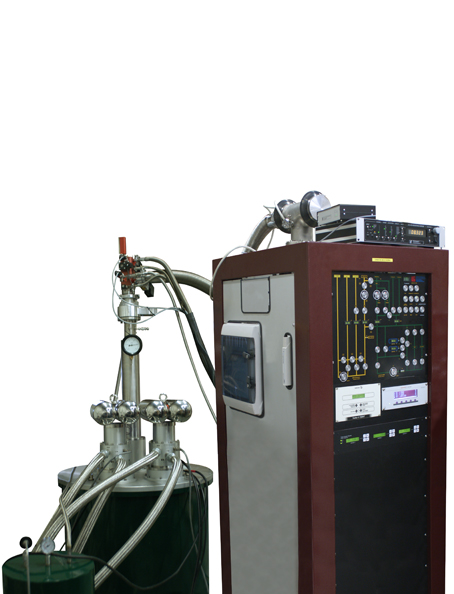

Magnet & Integrated Variable Temperature Sample Space With DR Insert

Click image to enlarge

Typical dimensions

• 50 mm 4 K magnet bore, 30 mm sample space in DR
• Suitable for use with Leiden DR type CF200, CF450, CF650 or CF1000 DR















Key Features

• Adapted MCK model DR inserted into 50 mm 1.6 K–300 K VTI
• VTI cooling power used for condensing stage of DR
• Versatile solution as the magnet system can also be used with other inserts and measurement probes
• including He3, heated probes, rotator, VSM etc.
• Bottom loading DR with options of sample in liquid or sample in vacuum
• Suitable for use with systems up to 18 T and neutron-scattering split-pair systems
